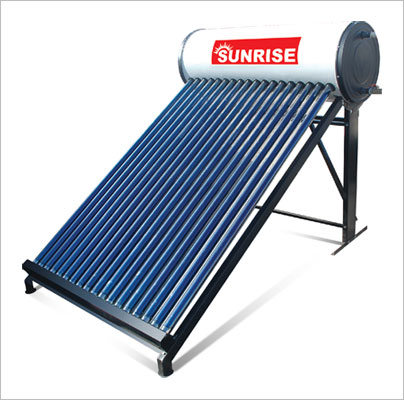

We are Manufacture in Domestic and non Domestic Solar water heating System, Is quite popular and is preferred over electric water heaters and convenational Falt Plate and also glass tube type solar water heating system.
Industries that can benefit from application of solar energy to heat water are….
Specifications
• High Density Galvanise
• Thick Tank (Avg. 12 gauge)
• Thick Tank Gives More Strenght
• PUF Insulation
• Marine Inside Coating
• Aluminium embossed side cover
• G. I. Sheet Stand
• S.S. Nipples (Thread fitted on coupling)
• Hot Deep Galvanize Base & Leg
Applications
• Household Water Heating
• Hotel & Restaurant
• Industrial & Commercial
• Swimming pool
• Health Club etc.
• Boiler Feed Water Preheating
• Hostel
• Hospital
| Parts | Features | User Benefits |
| Hot Water Tank | Marine Epoxy Coated (whole inner tank) |
Longer life, Protection against corrosion |
| Thick High Density Galvanised tank |
Longer life for any quality of water. Strong welding and nipple connections |
|
| Side cover Embossed With insulation | Weather Proof, Can be opened too. | |
| ETC Tube | Triple Layer, Best Vacuum Insulation | Better water heating, No heat loss. |
| Insulation | PUF | Negligible heat loss in winter. |
| Stand | Galvanised Hot dip GI base and leg |
Water proof Protects against rain water and corrosion |
| Water connection Nipples | SS Material Thread fitted with welded coupling |
Water Proof Strong joint, can be opened too. |
| Sr. No | System Capacity in (LPD) |
No. of Person |
No. of Vacuum Tube |
Occupied Area By Solar System (NS*EW) in Feet |
| 1 | 100 | 3-4 | 10 | 7 X 3.5 |
| 2 | 150 | 4-6 | 15 | 7 X 5 |
| 3 | 200 | 6-8 | 20 | 7 X 6.5 |
| 4 | 250 | 8-12 | 25 | 7 X 7.5 |
| 5 | 300 | 12-15 | 30 | 7 X 8.5 |
| 6 | 500 | 15-18 | 30* | 7.5 X 8.5 |
Solar Vacuum Tube Size: O.D. 58mm X 1800mm Length
Warranty 5 year
58mm X 2100mm Length*
